PWC / Skiff Lifts
Ready. Set. Launch. With Davit Master's PWC Lift it's that easy.
You finally have the sailboat, jet ski, power boat or PWC you've always wanted. The only thing better than feeling the wind in your face and riding the waves would be finding a PWC Lift that's as fun and easy to use.
Personal Watercraft Lifts from Davit Master leave others in their wake.
Why miss a single minute of fun? Davit Master PWC Lifts are versatile, lightweight and offer the ultimate ease and protection. With so many great choices, we'll make sure you find the one that fits your boat weight and travel length needs perfectly.
Epoch Lift - For the pontoon boat, small power boat or sailboat owner, Davit Master's Epoch Boat Lifts keep a low profile while launching or storing up to 4,500 pounds in minutes. Similar to an elevator, the Epoch Lift operates along a single track while being powered by a high speed electric winch. Get the best of both world's convenient drive-on storage combined with fast, safe and easy launching. Enjoy up to a full 20 feet in travel length and pick from plenty of options including aluminum, a stainless steel track, a dual lift with longer arms - even a custom platform.
Mini Lift - Davit Master's Mini Boat Lift delivers the same low-profile, high-performance solution for single crafts up to 1,500 pounds. With a lift-car designed to travel or stop along the full length of the track, the Mini Boat Lift is ideal for extreme tidal areas as well as lakes and other waterways, plus offers travel lengths up to 15 feet. Imagine having the luxury and convenience of drive-on storage right in your own backyard.
Swinger Lift - Live in a saltwater area? Need to lift and rotate your PWC over a dock or seawall? The Swinger Boat Lift is the answer. Launch and store up to 1,500 pounds in an instant. Easy access makes maintenance a snap. The Swinger Lift stays ship-shape since it's not mounted in the water and stores out of water. Choose from electric or manual self-braking winch options.
PWC Davit - Easily hoist up to 1,000 pounds with Davit Master's PWC Davit. Maneuvering is a breeze with rotation up to 360 degrees. Don't forget, the PWC stand provides a safe, sturdy platform to store your craft.
The EPOCH is an attractive low-profile design that is easy to use, powerful and dependable. The EPOCH operates along a single track and is able to stop anywhere along the track. Made with 6061-T6 Marine Grade Aluminum, the EPOCH is well suited for all marine environments.
| Model | Capacity | Winch | Controls | Base | Lift Arms | Beam | Track/Travel | Reach | Height | Cable | Cable Rigging |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Epoch 3000 | 3000 lbs | Electric EPOCH 3000 GEARED with 3/4 HP 1725 Motor | Up/Down Reversing Switch | Pile, Seawall, Dock | 8' - 8" | N/A | N/A | N/A | N/A | N/A | N/A |
| Epoch 4500 | 4500 lbs | Electric EPOCH 4500 GEARED with 1 HP 1725 SS MOTOR | Up/Down Reversing Switch | Pile, Seawall, Dock | 8' - 8" | N/A | N/A | N/A | N/A | N/A | N/A |
- Quiet dependable operation
- Low profile design that minimizes water and dock space footprint
- All welded construction for strength and durability
- Hot-dipped galvanized steel OR 6061-T6 Marine Grade Aluminum
- Adjustable chock system with carpeted boards
- Inboard PVC guide posts
- Aluminum sheaves & stainless bolts with grease fittings
- Aluminum travel wheels & stainless bolts with grease fittings
- Stainless steel cable
- Stainless steel safety cable with protective cover
- Sacrificial Zinc plate with wire
- Easy to installation with technical support
- Comprehensive warranty
- Product liability Coverage
- Wireless remote controls
- Extended lift arms for dual PWC's and Larger skiffs
- Extended track for deep water
- Extra chocks for dual PWC's
- Motor covers
- Galvanized walkways
- Galvanized platforms
- Outboard PVC pipe guides
- Stainless steel track

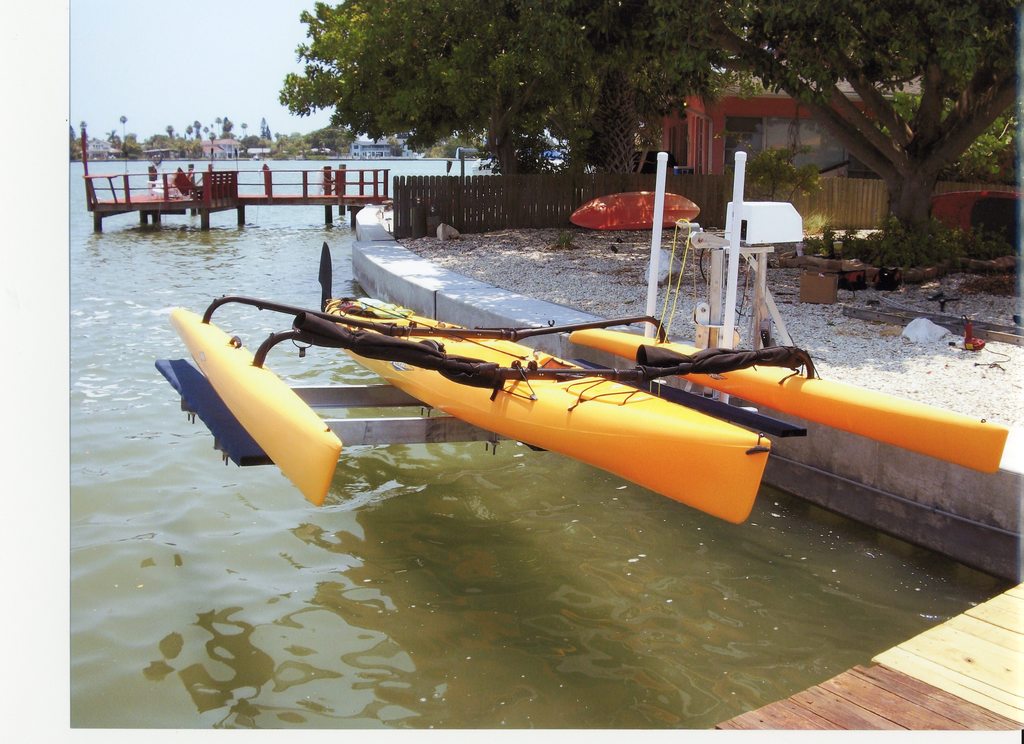

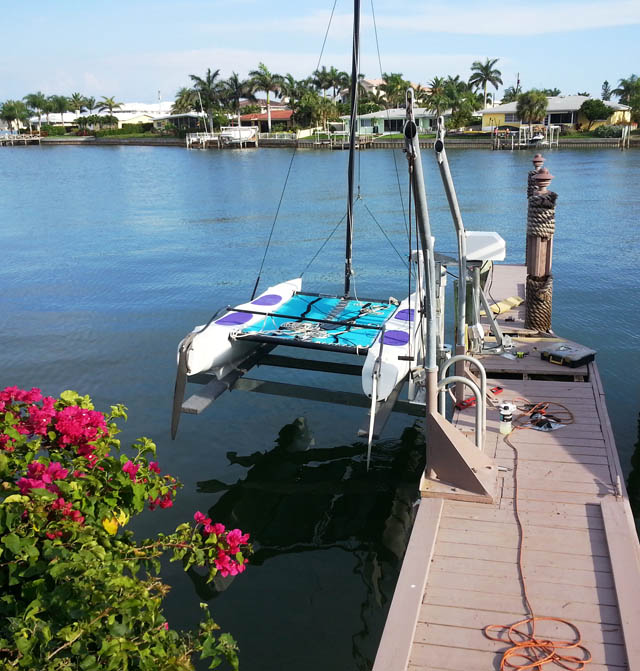

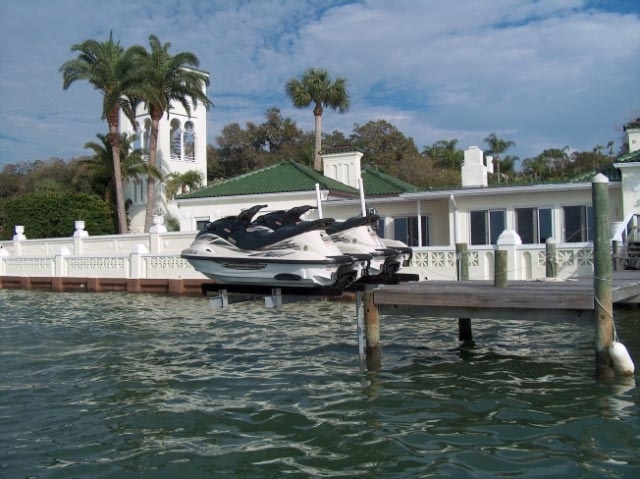

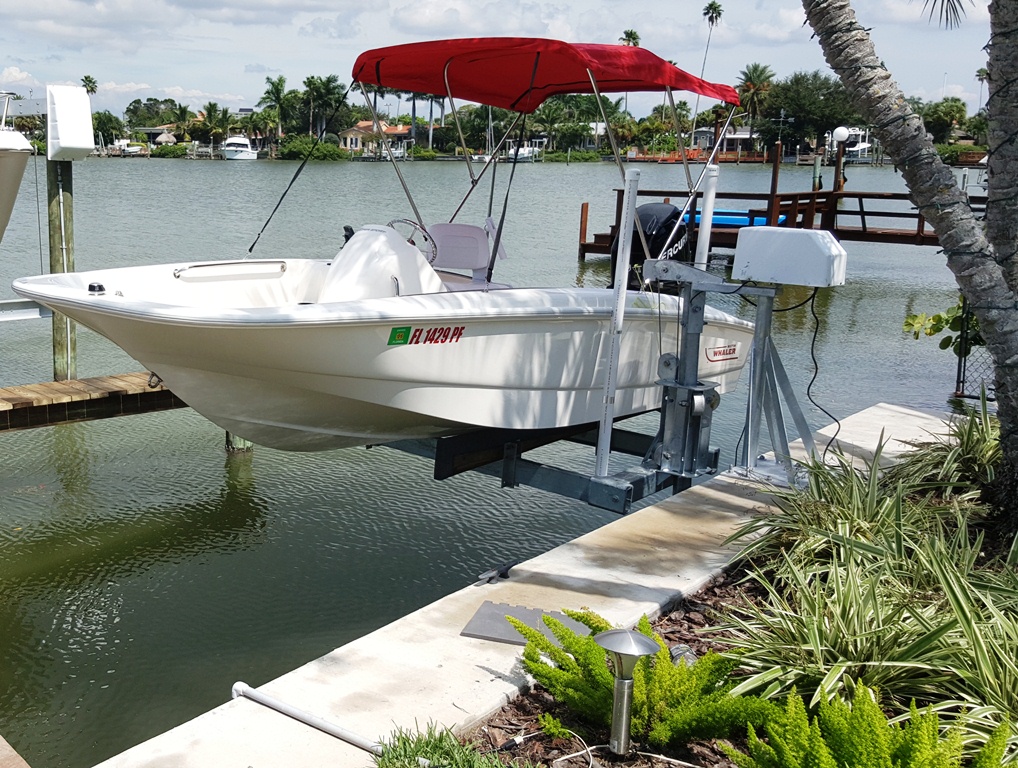

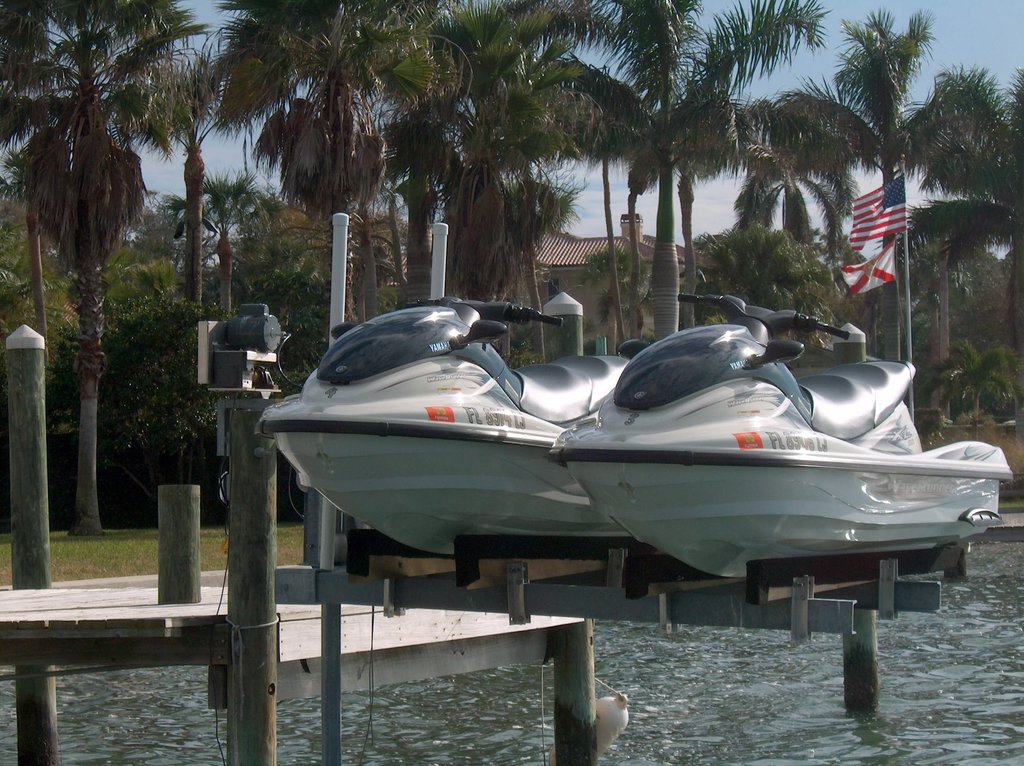

The MINI is an economical vertical lift with a clean low-profile design.
| Model | Capacity | Winch | Controls | Base | Lift Arms | Beam | Track/Travel | Reach | Height | Cable | Cable Rigging |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MINI 1500 | 1500 lbs | Manual, BD15 Electric Winch | Up-Down Switch | Pile, Seawall, Dock | 7' - 8" | N/A | 13'/13' | N/A | N/A | N/A | N/A |
- Quiet dependable operation
- Low profile design that minimizes water and dock space footprint
- All welded construction for strength and durability
- Hot-dipped galvanized steel construction
- Adjustable chock system with carpeted boards
- Inboard PVC guide posts
- Aluminum sheaves & stainless bolts with grease fittings
- Aluminum travel wheels & stainless bolts with grease fittings
- Stainless steel cable
- Stainless steel safety cable with protective cover
- Sacrificial Zinc plate with wire
- Easy to installation with technical support
- Comprehensive warranty
- Product liability Coverage
- Wireless remote controls
- Outboard PVC pipe guides
- Stainless steel track
- Extended lift arms for dual PWC's and Larger skiffs
- Extended track for deep water
- Extra chocks for dual PWC's
- Motor covers
- Galvanized walkways
- Galvanized platforms
An aluminum vertical lift that conveniently rotates 180°!
| Model | Capacity | Winch | Controls | Base | Lift Arms | Beam | Track/Travel | Reach | Height | Cable | Cable Rigging |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Swinger 1500 | 1500 lbs | Manual, Belt Drive, Direct | Up-Down Switch | Pile | N/A | Up to 7' | 8'6" | N/A | N/A | N/A | N/A |
| Swinger 3000 | 3000 lbs | Belt Drive, Direct Drive | Up-Down Switch | Pile Mount | 5'2" | Up to 80" | 8'6" | N/A | N/A | N/A | N/A |
- Rotates 180 Degrees
- Marine grade aluminum
- Welded construction
- MDS nylon rollers
- UHMW wear pads
- Inboard PVC guide posts
- Manual or Belt Drive electric winch
- Wireless remote control
Ideal for small boats and personal watercrafts.
| Model | Capacity | Winch | Controls | Base | Lift Arms | Beam | Track/Travel | Reach | Height | Cable | Cable Rigging |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P 600 | 600 lbs | Manual, Belt Drive | Up-Down Switch | Pile, Dock, Seawall | N/A | N/A | N/A | 3'-9P | 6'-3P | 3/16" X 20' | 1-Part |
| B 1000 | 1000 lbs | Manual, Belt Drive, Direct Drive | Up-Down Switch | Pile, Dock, Seawall | N/A | N/A | N/A | 4'-11P | 7'-3P | 1/4" X 20' | 1-Part |
| B 1850 | 1850 lbs | Manual, Belt Drive, Direct Drive | Up-Down Switch | 2500 | N/A | N/A | N/A | 5'-5P | 7'-3P | 1/4" X 20' | 2-Part |
| B 3000 | 3000 lbs | Manual, Direct Drive | Up-Down Switch | 3500 | N/A | N/A | N/A | 6'-0P | 8'-3P | 1/4" X 38' | 2-Part |
- All welded design for strength and durability
- Hot-dipped galvanized steel for long life and low maintenance
- Machined rollers provide smooth rotation
- Roller bolts with grease fittings for easy maintenance
- Galvanized steel cable is strong and durable
- Aluminum sheaves with stainless steel bolts with grease fittings
- Comprehensive warranty
- Elecric or Manual winch
- Wireless remote control system
- Faster motor
- Motor and winch cover
- Ultra PWC lifting harness
- Aluminum PWC stand
- Comprehensive warranty
